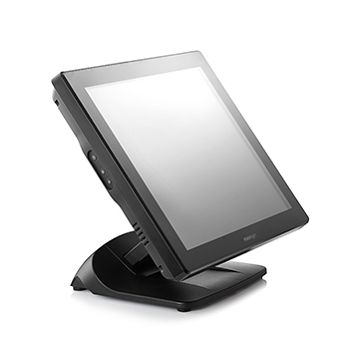

Posiflex XT-7315 15" Touch Screen POS Terminal

Overview

The Posiflex XT-7315 is the companion of the XT-6315, which has been enhanced with 8^th generation Intel Coffee Lake CPUs, which is powerful enough to handle any task imaginable that comes its way.

Download Product Specification

Register to get started

Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.

My account

Key Features

15” TFT LCD PCAP touch
Intel Coffee Lake Celeron; Pentium; i3; i5; i7
up to 32Gb RAM
64Gb SSD
Fanless Design
Multi-Position Folding Base

Sleek Look
Slimmer than ever! Every curve and detail of the XT-7315 is carefully thought out to make itself one of the most visually desirable terminals in the market.

Multi-Position Folding Base
The patented foldable base of the XT-7315 enables users to adjust the screen to a height and angle of their choice, providing unparalleled flexibility. (U.S. Patent 9004436)

Scalable Performance
A wide range of CPU options from Intel Celeron to Core i7 to fit each unique need.

Fanless Design
Solve the fan maintenance issue and provide silent mode operation, which is ideally suited for high-end boutique stores or hospital environments.

GEN8E Base
Optional GEN8E Base (U.S. Patent 9004436) that integrates internal power adaptor and PoweredUSB port into the base stand, which keeps counters clutter-free.

System Configuration
Processor	Intel Coffee Lake Celeron G4900T; Intel Coffee Lake Pentium G5400T; Intel Coffee Lake Core i3-8100T; Intel Coffee Lake Core i5-8500T; Intel Coffee Lake Core i7-8700T
System Memory	2 x DDR4 SO-DIMM, max. 32 GB
Storage Device	2 x SATA connector
RAID Function	N/A
Intel vPro Support	N/A
TPM Support	TPM 2.0
OS Support	Windows 10 IoT 64 bit

Display & Touch
LCD	15” TFT LCD
Resolution	1024 x 768
Touch	PCAP touch with multi-touch support

I/O Expansion
Serial Port	2 x DB9 + 2 x RJ50 + optional COM 5 / COM 6 via converter cable
Standard USB Port	4 x USB 3.0 + 2 x USB 2.0
Parallel Port	Optional via converter cable
PoweredUSB Port	Optional 1 x 24V + 3 x 12V via GEN8E base
LAN Port	10 / 100 / 1000 Mb x 2
Display Port	1 x VGA + 1 x mini-HDMI, 12V support on VGA port for Posiflex monitors
CR Port	1, control 2 CR via optional Y-cable
PS/2 Port	Optional via conversation cable
UPS Port	Yes, battery optional
Audio	1 x internal 2W speaker + Line-out
Internal Expansion Slot	1 x M.2 for WIFI

Physical Dimension
Dimension (W x D x H in mm)	372x320x252.7
Weight (N. W. in kg)	5.86

Environmental
Operating Condition	0°C - 40°C, 20%RH - 90%RH (Equipped with HDD); 0°C - 50°C, 20%RH - 90%RH (Equipped with SSD)
Storage Condition	-20°C - 70°C, 10%RH - 90%RH
	* The product information and specifications are subject to change without prior notice.
