Key Features
- 15" TFT LCD
- Intel Apollo Lake N3350
- DDR3L SO-DIMM x 1, max. 8GB
- M.2 connector (SATA Signal Only) x 1
Intelligently Designed
|
Expanded Capability
|
Compact
|

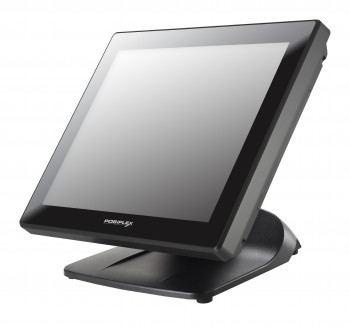

Posiflex PS-3615 15" Widescreen POS Terminal
Overview
Crafted with functionality and flexibility in mind, PS-3615 Series features a 15” wide PCAP touch screen, fanless technology, and an adjustable base to scale to meet both retailers’ and consumers’ expectations—all within an affordable, yet attractive and feature-rich terminal.
Download Product SpecificationRegister to get started
Apply for a ForPOS account to view pricing, receive exclusive discounts and some other incentive etc etc.
My account| System Configuration | |
| Processor | Intel Apollo Lake N3350 |
| System Memory | DDR3L SO-DIMM x 1, max. 8GB |
| Storage Device | M.2 connector (SATA Signal Only) x 1 |
| Power Supply | 12V/40W |
| OS Support | Windows 10 IoT |
| Display & Touch | |
| LCD | 15" TFT LCD |
| Resolution | 1024 x 768 |
| Touch | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| I/O Expansion | |
| Serial Port | 4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports |
| Parallel Port | 1, via optional conversion cable through service window |
| Standard USB Port | 5, USB 3.0 x 2+ USB 2.0 x 2 (on I/O plate) + USB 2.0 x 1 (on the top) |
| PoweredUSB Port | Optional 24V x 1 + 12V x 3 via GEN8 base |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | VGA x 1, 12V support for Posiflex monitors |
| CR Port | 1, control 2 CR via optional Y-cable, supporting 24V cash drawer |
| PS/2 Port | 1, via optional conversion cable through service window |
| Audio | Buzzer x 1; Optional internal 2W speaker x 1 |
| Expansion Slot | M.2 slot x 1 |
| Physical Dimension | |
| Dimension (W x D x H in mm) | 372 x 252.7 x 320 |
| Weight (N. W. in kg) | 5.86 |
